Программируемое реле на Ардуино

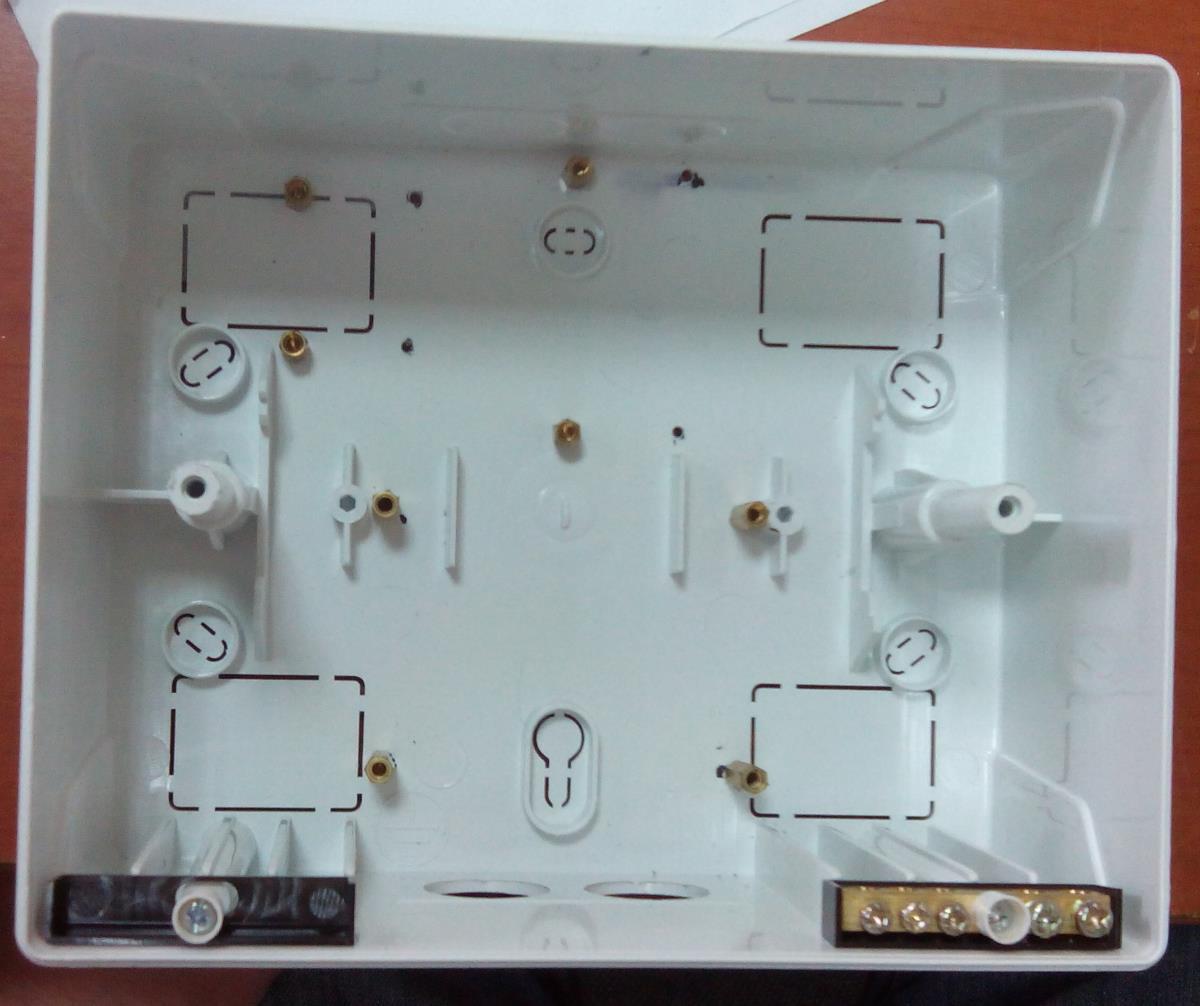

Поставил монтажные стойки под модули:

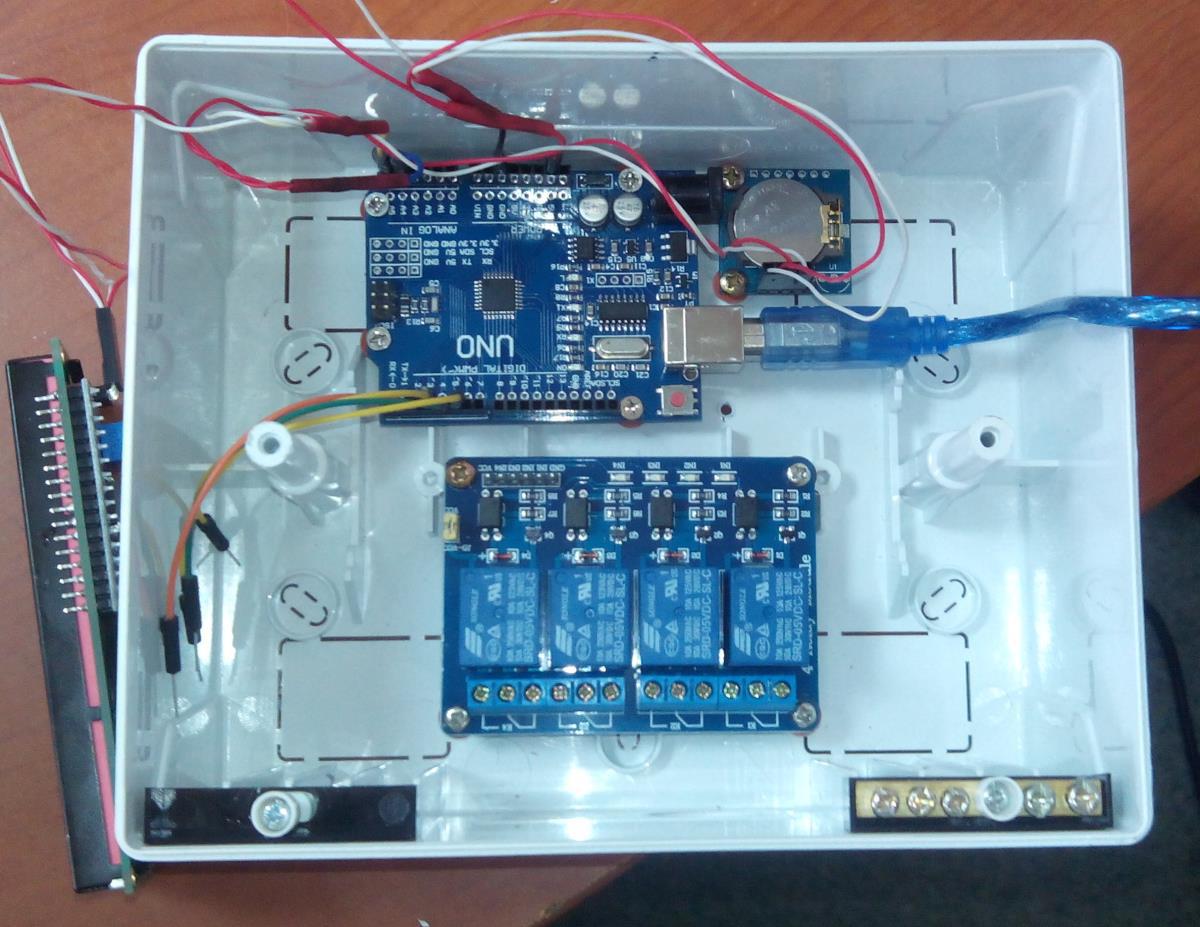

Прикрутил реле, часы, контроллер:

От принтера взял пару валиков и какую-то втулку. Втулка приклеена на двухсторонний скотч. На них будет крепиться еще одна плата, об этом ниже.

Блок питания взял от какого-то роутера Dlink, 5В 2А, ломать голову не стал запаял прямо на него USB провод:

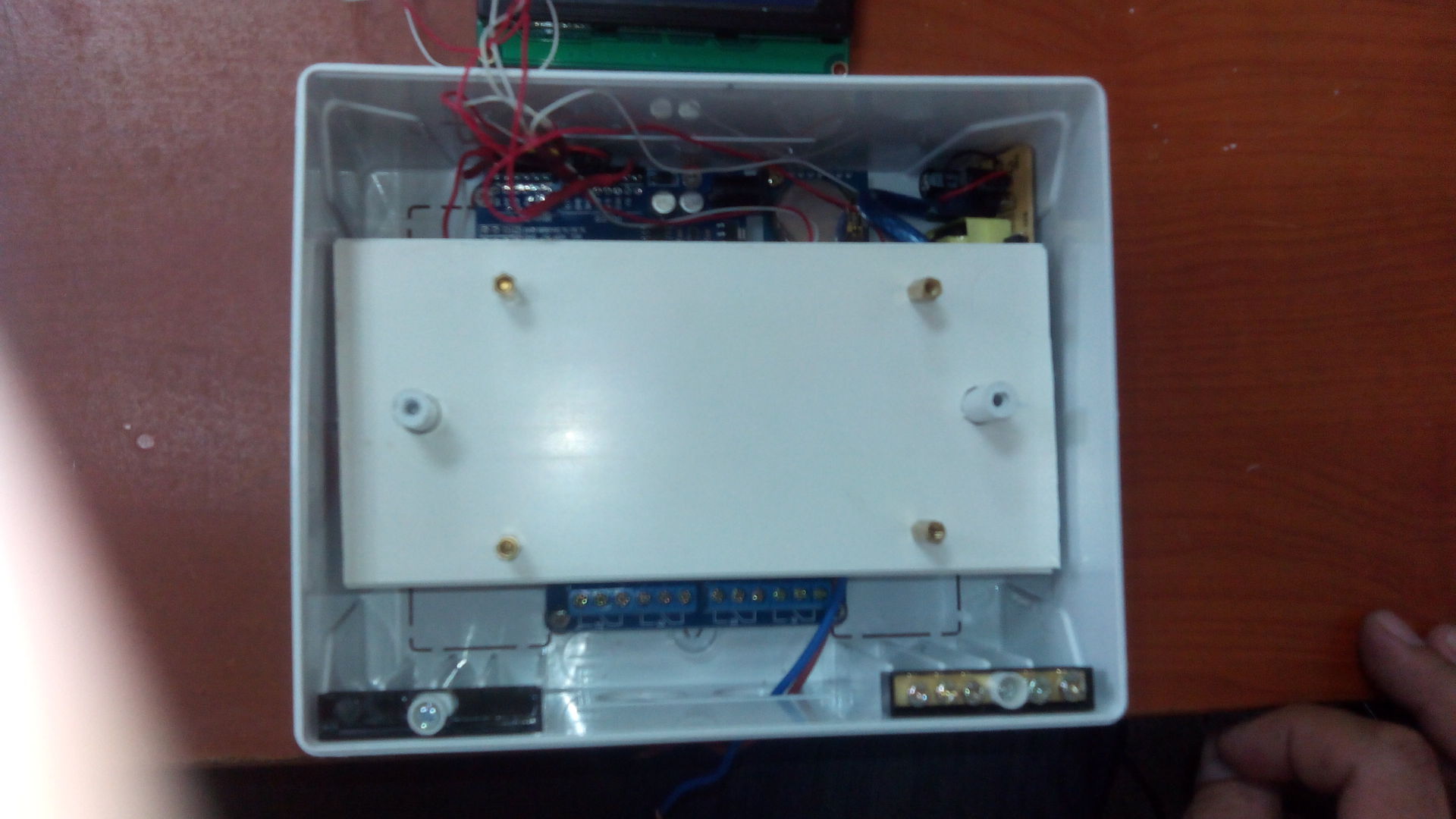

Вырезал из пластика панель для крепления экрана:

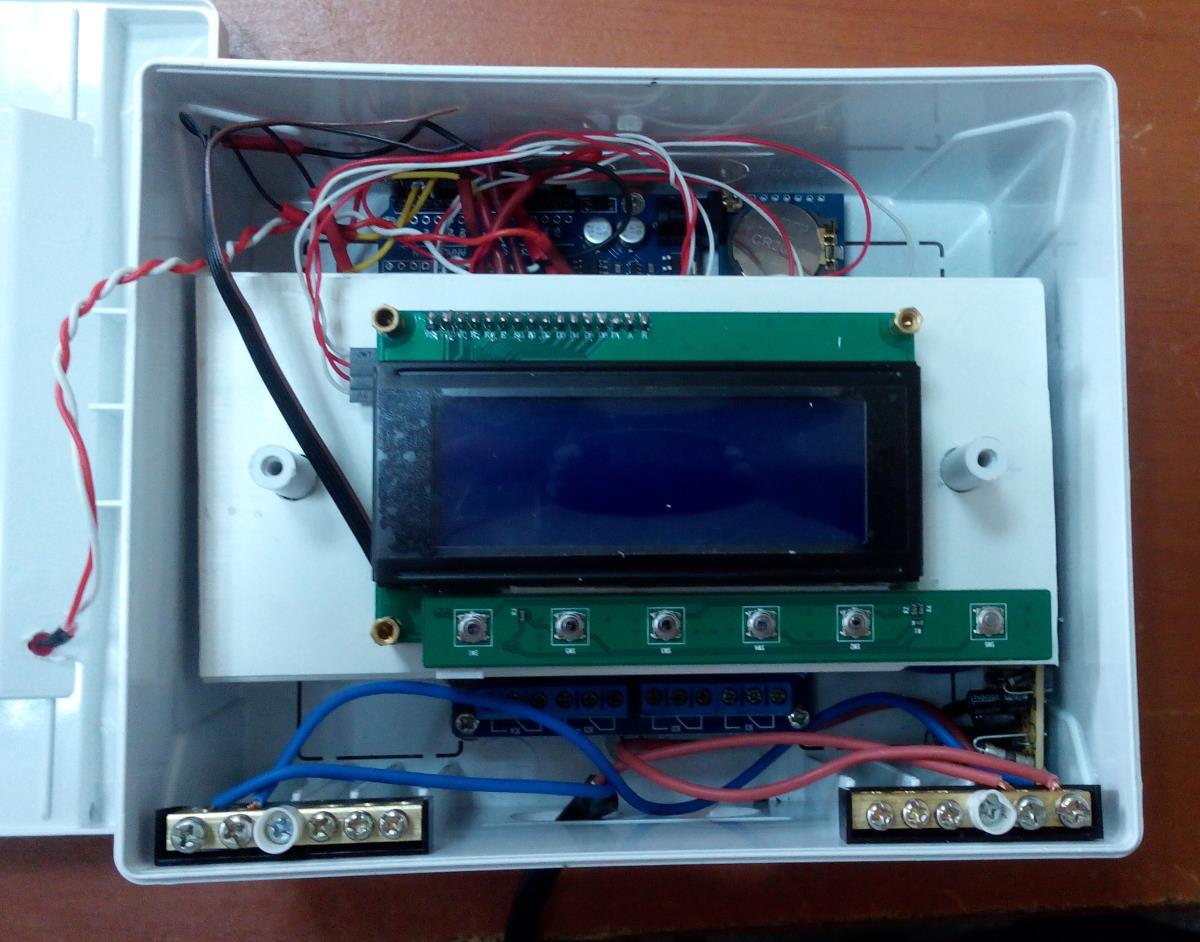

Установил экран. Закрепил монтажными стойками, под клавиатурой — винт. Стойки подобраны по высоте с расчетом, что в них будет упираться крышка щитка, придавая жесткость конструкции. Втулка на блоке реле предотвращает продавливание платы вниз при нажатии кнопок.

Кнопки изначально планировал подключить к цифровым входам, но внезапно нашел модуль клавиатуры от монитора, который подошел как родной (схема кнопок от монитора).

Клавиатуру приклеил на двухсторонний скотч через прокладку, что бы поднять плату над правым нижним винтом. Кнопки нажимаю спичкой через отверстия. В идеале надо рассверлить отверстия и вставить туда нормальные толкатели. Может быть сделаю холодным зимним вечером, а сейчас потребовалось срочно внедрить реле на нагрев воды.

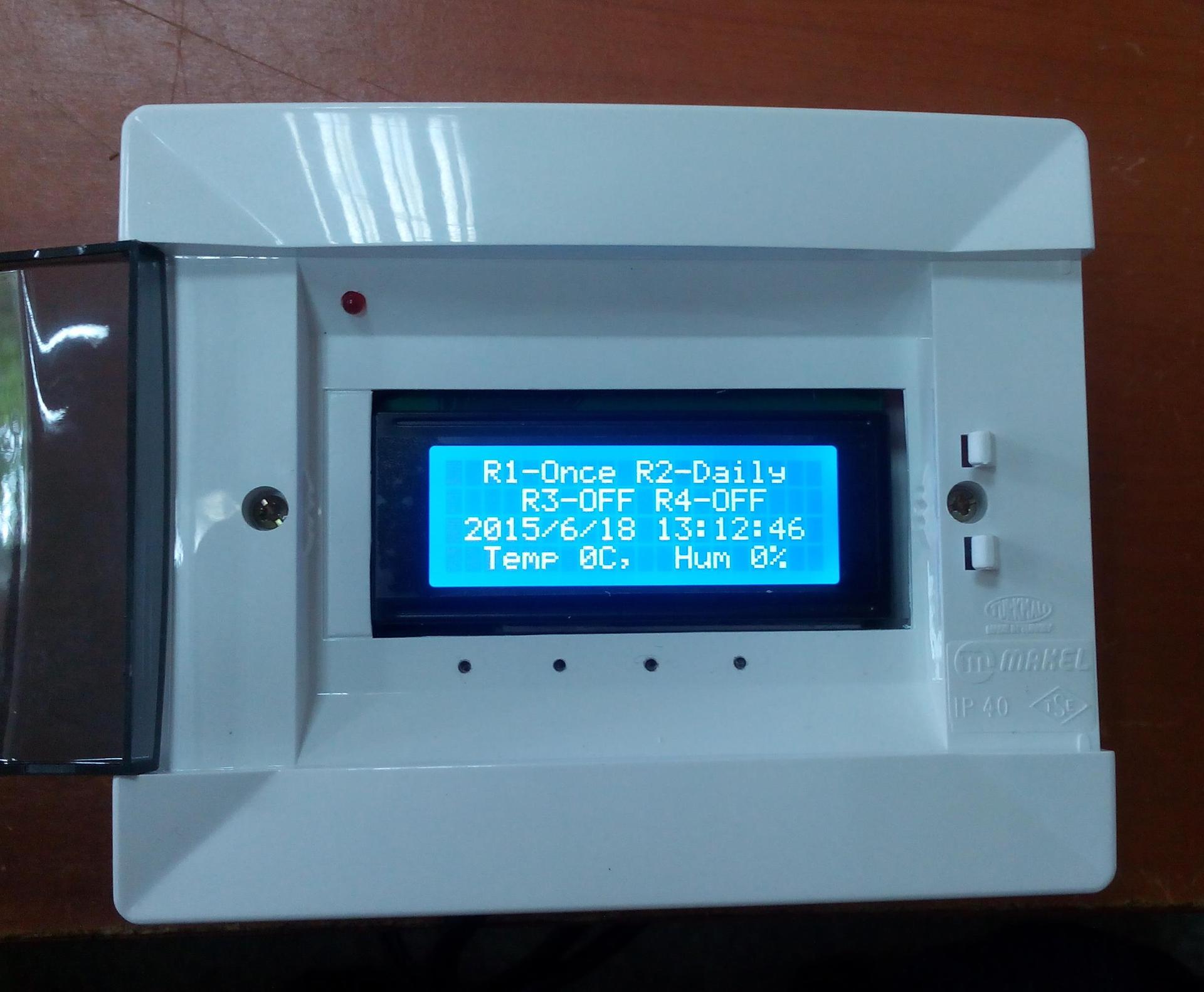

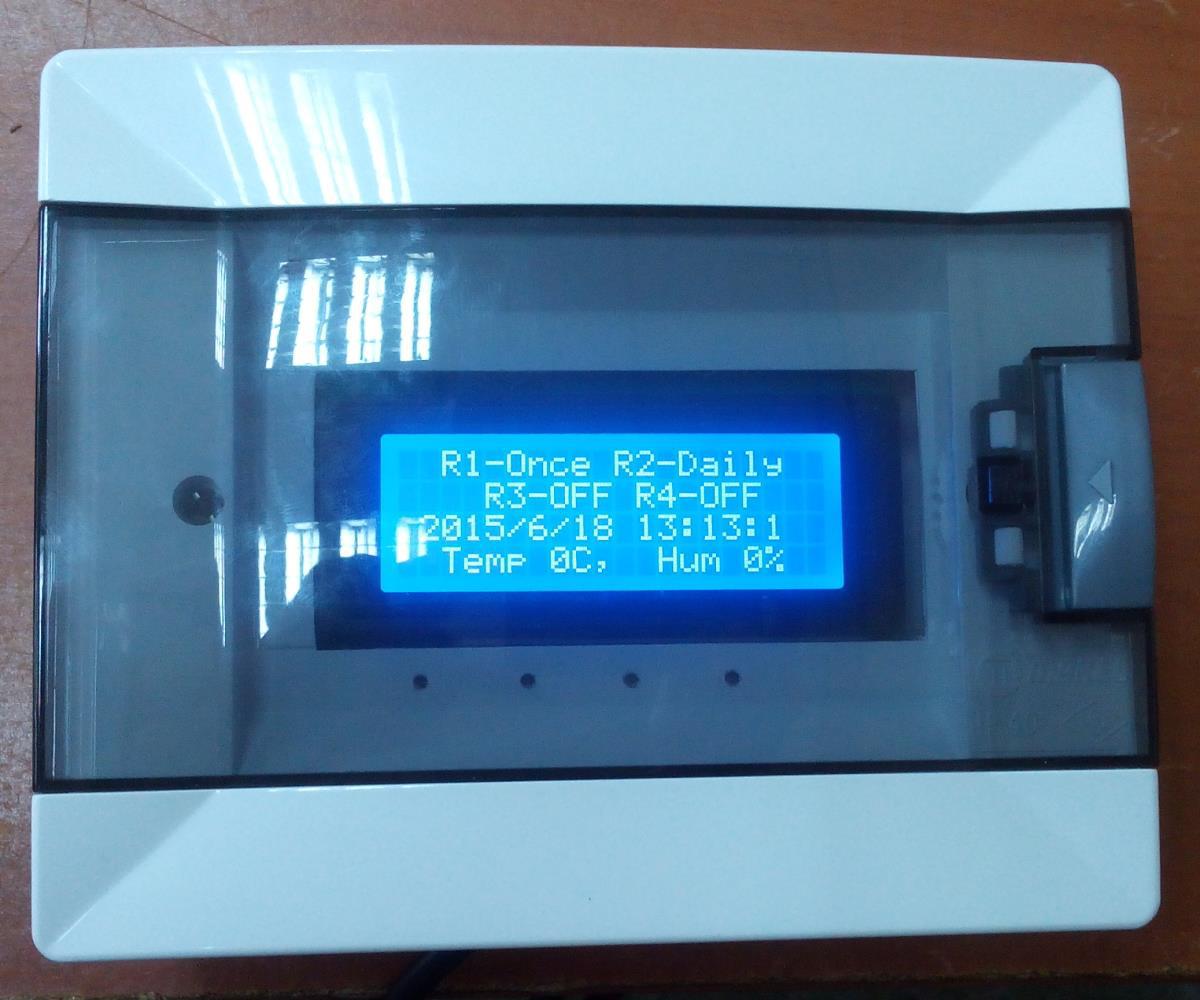

Фото готового устройства:

Мигающий светодиод также присутствует.

#include <DHT.h>
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <RTClib.h>
#define LEFT 0
#define CENTER 1
#define RIGHT 2

#define RelayModesCount 4
#define KeyFirst 2
#define KeyLast 6

LiquidCrystal_I2C lcd(0x27, 2, 1, 0, 4, 5, 6, 7, 3, POSITIVE);
RTC_DS1307 RTC; // RTC Modul
DHT dht(7, DHT21); // pin, type
volatile boolean Blinker = true;
volatile long BlinkerTime;
volatile byte ButtonPress[8];
const String RelayModeNames[] = {«OFF», «ON», «Once», «Daily»};

int aKey1 = 0;
int aKey2 = 0;

DateTime NowDate;

boolean DoBlink(void)
{
boolean Result = false;
long NBlinkerTime = millis();
if (Blinker)
{
if (NBlinkerTime — BlinkerTime > 200)
{
digitalWrite(8, HIGH);
BlinkerTime = NBlinkerTime;
Blinker = false;
Result = true;
}
}
else
{
if (NBlinkerTime — BlinkerTime > 300 )
{
digitalWrite(8, LOW);
BlinkerTime = NBlinkerTime;
Blinker = true;
}

}
return Result;
}
String BlinkString(String string, byte Cur, byte ItemsCount)
{
String result = string;
byte len = string.length();
if (!Blinker && Cur == ItemsCount)
{
for (byte i = 0; i < len; i++) result.setCharAt(i, ' ');
}
return result;
}

/********************************************************************************************************/
/********************************** Объявление классов *********************************************/
/********************************************************************************************************/

class TMenu
{
public:
byte _ItemsCount;
TMenu *Parent;
String *MenuName;
boolean ItemIsValue;
byte CurrentItem;

TMenu **Items;
String *ItemsName;
// byte ItemsCount(void);
byte ItemsCount(void) {
return _ItemsCount;
};
bool AddItem(TMenu *NewItem);

virtual void Print(void);
void OnKey(byte KeyNum);
void ChangeItem(byte value);

virtual void Increment(void);
virtual void Decrement(void);

virtual void OnSet(void);
DateTime CheckDateTime(DateTime OldDate, int Increment, byte DatePart);
};

class TNoMenu: public TMenu
{
public:
void Print(void);
TNoMenu(TMenu *ParentMenu) {
MenuName = 0;
CurrentItem = 0;
_ItemsCount = 0;
Parent = ParentMenu;
Items = 0;
ItemsName = 0;
ItemIsValue = false;
};
void Increment(void) {};
void Decrement(void) {};
void OnSet(void) {};

};

class TSelectMenu: public TMenu
{
public:
void Print(void);
TSelectMenu(TMenu *ParentMenu, String NewName) {
MenuName = new String(NewName);
CurrentItem = 0;
_ItemsCount = 0;
Parent = ParentMenu;
Items = 0;
ItemsName = 0;
ItemIsValue = false;
};
void Increment(void) {};
void Decrement(void) {};
void OnSet(void) {};
};

class TTimeMenu: public TMenu
{
public:
void Print(void);
DateTime *SetDateTime;
long OldDateTime;
TTimeMenu(TMenu *ParentMenu, String NewName, DateTime *ParamDate) {
MenuName = new String(NewName);
CurrentItem = 0; _ItemsCount = 6; Parent = ParentMenu; Items = 0; ItemsName = 0;
ItemIsValue = true; OldDateTime = millis();
SetDateTime = ParamDate;
};
void Increment(void) {
*SetDateTime = CheckDateTime (*SetDateTime, 1, CurrentItem);
};
void Decrement(void) {
*SetDateTime = CheckDateTime (*SetDateTime, -1, CurrentItem);
};
void OnSet(void) {
RTC.adjust(*SetDateTime);
};
void SecondTimer(void) {
long TmpDateTime = millis(); if (TmpDateTime — OldDateTime > 1000) {
OldDateTime = TmpDateTime;
*SetDateTime = *SetDateTime + 1;
};
};
};
class TRelayMenu: public TMenu
{
public:
byte RelayNumber;
byte RelayMode;
// byte Shedule=0;
boolean OnceBit;
DateTime RelayOn;
DateTime RelayOff;
TRelayMenu(TMenu *ParentMenu, byte NewNumber, String NewName) {
MenuName = new String(NewName);
CurrentItem = 0; _ItemsCount = 11; Parent = ParentMenu; Items = 0; ItemsName = 0; ItemIsValue = true, OnceBit = false;
RelayNumber = NewNumber;
RelayMode = 0;
RelayOn = DateTime(2015, 1, 1, 23, 00, 00);
RelayOff = DateTime(2015, 1, 1, 07, 00, 00);
};
void Print(void);
void Increment(void) {
if (!CurrentItem) {
RelayMode++;
if ( RelayMode >= RelayModesCount) RelayMode = 0;
}
else if (CurrentItem < 6) RelayOn = CheckDateTime (RelayOn, 1, CurrentItem — 1);
else RelayOff = CheckDateTime (RelayOff, 1, CurrentItem — 6);
};
void Decrement(void) {
if (!CurrentItem) {
RelayMode--;
if ( RelayMode > 127) RelayMode = RelayModesCount — 1;
}
else if (CurrentItem < 6) RelayOn = CheckDateTime (RelayOn, -1, CurrentItem — 1);
else RelayOff = CheckDateTime (RelayOff, -1, CurrentItem — 6);
};

boolean CheckDaily(void);

void OnSet(void) {
///// здесь надо записать реле в память

byte p_address = RelayNumber * 16;
EEPROM.write(p_address, RelayMode);

EEPROM.write(p_address + 1, byte(RelayOn.year() — 2000));
EEPROM.write(p_address + 2, byte(RelayOn.month() ));
EEPROM.write(p_address + 3, byte(RelayOn.day() ));
EEPROM.write(p_address + 4, byte(RelayOn.hour() ));
EEPROM.write(p_address + 5, byte(RelayOn.minute() ));

EEPROM.write(p_address + 6, byte(RelayOff.year() — 2000));
EEPROM.write(p_address + 7, byte(RelayOff.month() ));
EEPROM.write(p_address + 8, byte(RelayOff.day() ));
EEPROM.write(p_address + 9, byte(RelayOff.hour() ));
EEPROM.write(p_address + 10, byte(RelayOff.minute() ));
};
};

/********************************************************************************************************/
/******************************** Конец объявления классов ******************************************/
/********************************************************************************************************/

TMenu *CurrentMenu = 0;
TNoMenu *NoMenu = 0;
TSelectMenu *SelectMenu;
TTimeMenu *TimeMenu;

TRelayMenu *RelayMenu[4];

/********************************************************************************************************************************************/
/********************************************************************************************************************************************/
/********************************************************************************************************************************************/
void setup()
{
NoMenu = new TNoMenu(0);
SelectMenu = new TSelectMenu (NoMenu, «NoMenu»);
TimeMenu = new TTimeMenu(SelectMenu, «Time Setup», &NowDate);

SelectMenu->AddItem(TimeMenu);

byte p_address;
DateTime DTFlesh;
for (int i = 0; i < 4; i++)
{
// здесь надо добавить загрузку параметров из флеша
RelayMenu[i] = new TRelayMenu (SelectMenu, i, «Relay » + String(i + 1));
SelectMenu->AddItem(RelayMenu[i]);

p_address = i * 16;

RelayMenu[i]->RelayMode = EEPROM.read(p_address);

DTFlesh = DateTime(int(EEPROM.read(p_address + 1) + 2000), EEPROM.read(p_address + 2), EEPROM.read(p_address + 3), EEPROM.read(p_address + 4), EEPROM.read(p_address + 5), 0 );
RelayMenu[i]->RelayOn = RelayMenu[i]->CheckDateTime(DTFlesh, 0, 0);

DTFlesh = DateTime(int(EEPROM.read(p_address + 6) + 2000), EEPROM.read(p_address + 7), EEPROM.read(p_address + 8), EEPROM.read(p_address + 9), EEPROM.read(p_address + 10), 0 );
RelayMenu[i]->RelayOff = RelayMenu[i]->CheckDateTime(DTFlesh, 0, 0);
}

for (byte i = KeyFirst; i < KeyLast; i++)
{
pinMode(i, INPUT); //Keypad 2-«menu» 3-"-" 4-"+" 5-«SET»
digitalWrite(i, HIGH); //setup Resistor input2Vcc
ButtonPress[i] = true;
}
pinMode(8, OUTPUT); //LED
pinMode(9, OUTPUT);
for (byte i = 10; i < 14; i++)
{
pinMode(i, OUTPUT); // relay i
digitalWrite(i, HIGH);
}

pinMode (A2, INPUT_PULLUP);
pinMode (A3, INPUT_PULLUP);

Serial.begin(9600); // Used to type in characters
digitalWrite(8, LOW);
digitalWrite(9, HIGH);

lcd.begin(20, 4); // initialize the lcd for 20 chars 4 lines and turn on backlight
RTC.begin();

lcd.noBacklight();
delay(150);
lcd.backlight();

NowDate = RTC.now();
//проверка времени
if ( NowDate.year() > 2000 && NowDate.year() < 2114 &&
NowDate.month() > 0 && NowDate.month() < 13 &&
NowDate.day() > 0 && NowDate.day() < 32 &&
NowDate.hour() >= 0 && NowDate.hour() < 24 &&
NowDate.minute() >= 0 && NowDate.minute() < 60 &&
NowDate.second() >= 0 && NowDate.second() < 60 )
{
CurrentMenu = NoMenu;
}
else
{
lcd.setCursor(2, 1);
lcd.print(«Clock Failure!»);
delay(700);
RTC.adjust(DateTime(2015, 1, 1, 00, 00, 00));
CurrentMenu = TimeMenu;
}

}

void loop()
{
/********* KEYPAD BUNCLE, 5 keys, from 2 to 6 *********/
byte NButtonPress[8] = {0, 0, 0, 0, 0, 0, 0, 0};
byte NButtonRelease[8] = {0, 0, 0, 0, 0, 0, 0, 0};
const byte ButtonTry = 3;

aKey1 = analogRead (2);
aKey2 = analogRead (3);
byte aKeyNum=0;

/**************** check for key pressed or released ****************/
for (byte i = 0; i < 3; i++)
{
delay(15);
if (aKey1< 64) aKeyNum=2;//AnalogKey 1 = Dig2
else if (aKey1<128) aKeyNum=6;//Analog key 3 = D4
else if (aKey1<256) aKeyNum=4;//key 5=d6
else if (aKey2< 64) aKeyNum=1;//key 6 = menu
else if (aKey2<128) aKeyNum=3;//analogkey 2 = D3
else if (aKey2<256) aKeyNum=5;//key 4 =d5
else aKeyNum=0; // no key

for (byte j = KeyFirst; j < KeyLast; j++) // Read ports 2...6
{
if (digitalRead(j) == LOW || aKeyNum==j)
{
NButtonPress[j]++;
NButtonRelease[j] = 0;
}
else
{
NButtonPress[j] = 0;
NButtonRelease[j]++;
delay(5);
}
}

}
/*************** Do key process ******************/
// byte m;

for (byte j = KeyFirst; j < KeyLast; j++)
{
if (NButtonPress[j] >= ButtonTry && ButtonPress[j] == false)
{
ButtonPress[j] = true;
CurrentMenu->OnKey(j);
}
else
{
if (NButtonRelease[j] >= ButtonTry && ButtonPress[j] == true)
{
ButtonPress[j] = false;
}
}
}
/***************** Relay Check *********************/

CurrentMenu->Print();
DoBlink();
}

void LcdPrint(byte string, String str, byte Align)
{
byte StrTrim1;
byte StrTrim2;
lcd.setCursor(0, string); //Start at character 0 on line 0
switch (Align)
{
case RIGHT:

break;

case CENTER:
StrTrim1 = byte((20 — str.length()) / 2);
StrTrim2 = 20 — str.length() — StrTrim1;
for (byte k = 0; k < StrTrim1; k++) lcd.print(" ");
lcd.print(str);
for (byte k = 0; k < StrTrim2; k++) lcd.print(" ");
break;

default:
lcd.print(str);
StrTrim1 = 20 — str.length();
for (byte k = 0; k < StrTrim1; k++) lcd.print(" ");
}
}

void TNoMenu::Print(void)
{
NowDate = RTC.now();
String Ddate;
Ddate = " R1-" + RelayModeNames[RelayMenu[0]->RelayMode] + " R2-" + RelayModeNames[RelayMenu[1]->RelayMode];
LcdPrint(0, Ddate, CENTER);
Ddate = " R3-" + RelayModeNames[RelayMenu[2]->RelayMode] + " R4-" + RelayModeNames[RelayMenu[3]->RelayMode];
LcdPrint(1, Ddate, CENTER);
Ddate = String (NowDate.year()) + "/" + String(NowDate.month()) + "/" + String(NowDate.day()) + " " + String (NowDate.hour()) + ":" + String(NowDate.minute()) + ":" + String(NowDate.second());
LcdPrint(2, Ddate, CENTER);
Ddate = «Temp » + String (int(dht.readTemperature())) + «C, Hum » + String(int(dht.readHumidity())) + "%";
LcdPrint(3, Ddate, CENTER);

RelayCheck();
}

void TTimeMenu::Print(void)
{
SecondTimer();
String Ddate = BlinkString(String((*SetDateTime).year()), CurrentItem, 0) + "/" +
BlinkString(String( (*SetDateTime).month()), CurrentItem, 1) + "/" +
BlinkString(String((*SetDateTime).day()), CurrentItem, 2) + " ";
LcdPrint(1, Ddate, CENTER);
Ddate = BlinkString(String ((*SetDateTime).hour()), CurrentItem, 3) + ":" +
BlinkString(String((*SetDateTime).minute()), CurrentItem, 4) + ":" +
BlinkString(String((*SetDateTime).second()), CurrentItem, 5);
LcdPrint(2, Ddate, CENTER);

LcdPrint(3, " ", CENTER);
RelayCheck();
}

void TMenu::OnKey(byte KeyNum)
{
switch (KeyNum)
{
case 3: // — if (ItemIsValue) Decrement();
else ChangeItem(-1);
break;
case 4: // +
if (ItemIsValue) Increment();
else ChangeItem(1);
break;
case 5: // SET
if (ItemIsValue)
{
OnSet();
ChangeItem(+1);
}
else // вход в подменю
{
if (Items && ItemsCount())
{
if (CurrentMenu->ItemsCount())
{
CurrentMenu = CurrentMenu->Items[CurrentMenu->CurrentItem];
CurrentMenu->CurrentItem = 0;
}
}
}
break;
default: // 2 -menu
if (Parent) CurrentMenu = CurrentMenu->Parent; //(TMenu *) &NoMenu;
else
{
CurrentMenu = SelectMenu;
CurrentMenu->CurrentItem = 0;
}
}
}

void TMenu::ChangeItem(byte value)
{
CurrentItem += value;
if (CurrentItem > 128) CurrentItem = ItemsCount() — 1;
else if (CurrentItem > ItemsCount() — 1) CurrentItem = 0;
}

boolean TMenu::AddItem(TMenu *NewItem)
{
if (!Items) Items = new TMenu *[_ItemsCount = 1];
else Items = (TMenu **)realloc((void *)Items, (_ItemsCount = _ItemsCount + 1) * sizeof(void *));
Items[_ItemsCount — 1] = NewItem;
}

DateTime TMenu::CheckDateTime(DateTime OldDate, int Increment, byte DatePart)
{
int DTmin[6] = {2000, 1, 1, 0, 0, 0};
int DTmax[6] = {2199, 12, 31, 23, 59, 59};

int DT[6];
int diff;

DT[0] = OldDate.year();
DT[1] = OldDate.month();
DT[2] = OldDate.day();
DT[3] = OldDate.hour();
DT[4] = OldDate.minute();
DT[5] = OldDate.second();
DT[DatePart] = DT[DatePart] + Increment;

if (DT[1] == 1 || DT[1] == 3 || DT[1] == 5 || DT[1] == 7 || DT[1] == 8 || DT[1] == 10 || DT[1] == 12) DTmax[2] = 31;
else if (DT[1] == 2)
{
if ((DT[0] % 4 == 0 && DT[0] % 100 != 0) || (DT[0] % 400 == 0)) DTmax[2] = 29;
else DTmax[2] = 28;
}
else DTmax[2] = 30;

for (byte i = 0; i < 6; i++)
{
if (DT[i] > DTmax[i]) DT[i] = DTmin[i];
else if (DT[i] < DTmin[i]) DT[i] = DTmax[i];
}

return DateTime(DT[0], DT[1], DT[2], DT[3], DT[4], DT[5]);

}

void TSelectMenu::Print(void)
{
NowDate = RTC.now();
byte shift = 0;
if (CurrentItem > 3) shift = CurrentItem — 3;
for (byte i = 0; i < 4; i++)
{
if ((CurrentItem — shift) == i) //&&Blinker)
{
LcdPrint(i, ">> " + * (Items[i + shift]->MenuName) + " <<", CENTER);
}
else LcdPrint(i, *(Items[i + shift]->MenuName), CENTER);
}
RelayCheck();
}

void TRelayMenu::Print(void)
{

String DData;
NowDate = RTC.now();
LcdPrint(0, (*MenuName) + "[" + BlinkString(RelayModeNames[RelayMode], CurrentItem, 0) + "]", CENTER);
DData = «On:»;
switch (RelayMode)
{
case 3: //Daily
// DData = DData + " ";
if (CurrentItem > 0 && CurrentItem < 4) CurrentItem = 4;
break;
default:
DData = DData + BlinkString(String(RelayOn.year(), DEC), CurrentItem, 1) + "/" + BlinkString(String( RelayOn.month(), DEC), CurrentItem, 2) +
"/" + BlinkString(String( RelayOn.day(), DEC), CurrentItem, 3);
}
DData = DData + " " + BlinkString(String (RelayOn.hour(), DEC), CurrentItem, 4) + ":" + BlinkString(String(RelayOn.minute(), DEC), CurrentItem, 5);
LcdPrint(1, DData, CENTER);
DData = «Off:»;
switch (RelayMode)
{
case 3: //Daily
// DData = DData + " ";
if (CurrentItem > 5 && CurrentItem < 9) CurrentItem = 9;
break;
default:
DData = DData + BlinkString(String(RelayOff.year(), DEC), CurrentItem, 6) + "/" + BlinkString(String( RelayOff.month(), DEC), CurrentItem, 7) +
"/" + BlinkString(String( RelayOff.day(), DEC), CurrentItem, 8);
}
DData = DData + " " + BlinkString(String (RelayOff.hour(), DEC), CurrentItem, 9) + ":" + BlinkString(String(RelayOff.minute(), DEC), CurrentItem, 10);
LcdPrint(2, DData, CENTER);
LcdPrint(3, " ", CENTER);
}

boolean TRelayMenu::CheckDaily(void)
{
int TimeOn = 60 * int(RelayOn.hour()) + int(RelayOn.minute());
int TimeOff = 60 * int(RelayOff.hour()) + int(RelayOff.minute());
int NowTime = 60 * int(NowDate.hour()) + int(NowDate.minute());
boolean result; // true = время включения больше времени выключения
if ( TimeOn > TimeOff )
{
if (NowTime <= TimeOff || NowTime >= TimeOn ) result = true;
else result = false;
}
else
{
if (NowTime <= TimeOff && NowTime >= TimeOn ) result = true;
else result = false;
};
return result;

}

void RelayCheck (void)
{
boolean OnceBitCheck;
for (byte i = 0; i < 4; i++)
{
switch (RelayMenu[i]->RelayMode)
{
case 1: //relay 0n
digitalWrite(i + 10, LOW);

break;
case 2: //Once;
OnceBitCheck = (NowDate.unixtime() > RelayMenu[i]->RelayOn.unixtime() && NowDate.unixtime()<RelayMenu[i]->RelayOff.unixtime());

if (OnceBitCheck) RelayMenu[i]->OnceBit = true;
else if (RelayMenu[i]->OnceBit)
{
RelayMenu[i]->RelayMode = 0;
byte p_address = RelayMenu[i]->RelayNumber * 16;
EEPROM.write(p_address, RelayMenu[i]->RelayMode);
}
digitalWrite(i + 10, !OnceBitCheck);
break;
case 3: //Daily
digitalWrite(i + 10, !(RelayMenu[i]->CheckDaily()));
break;
default: //relay 0ff
digitalWrite(i + 10, HIGH);
}
}
}
